Battery chemistry: LFP
Nominal battery voltage: 48V
Nominal battery capacity: 314Ah / 460Ah / 560Ah
Nominal battery energy capacity:16.1kwh / 23.552kwh / 28.6kwh
Cycle life: ＞4000 cycles@0.5C/0.5C @25±2℃
Customized solutions are available.

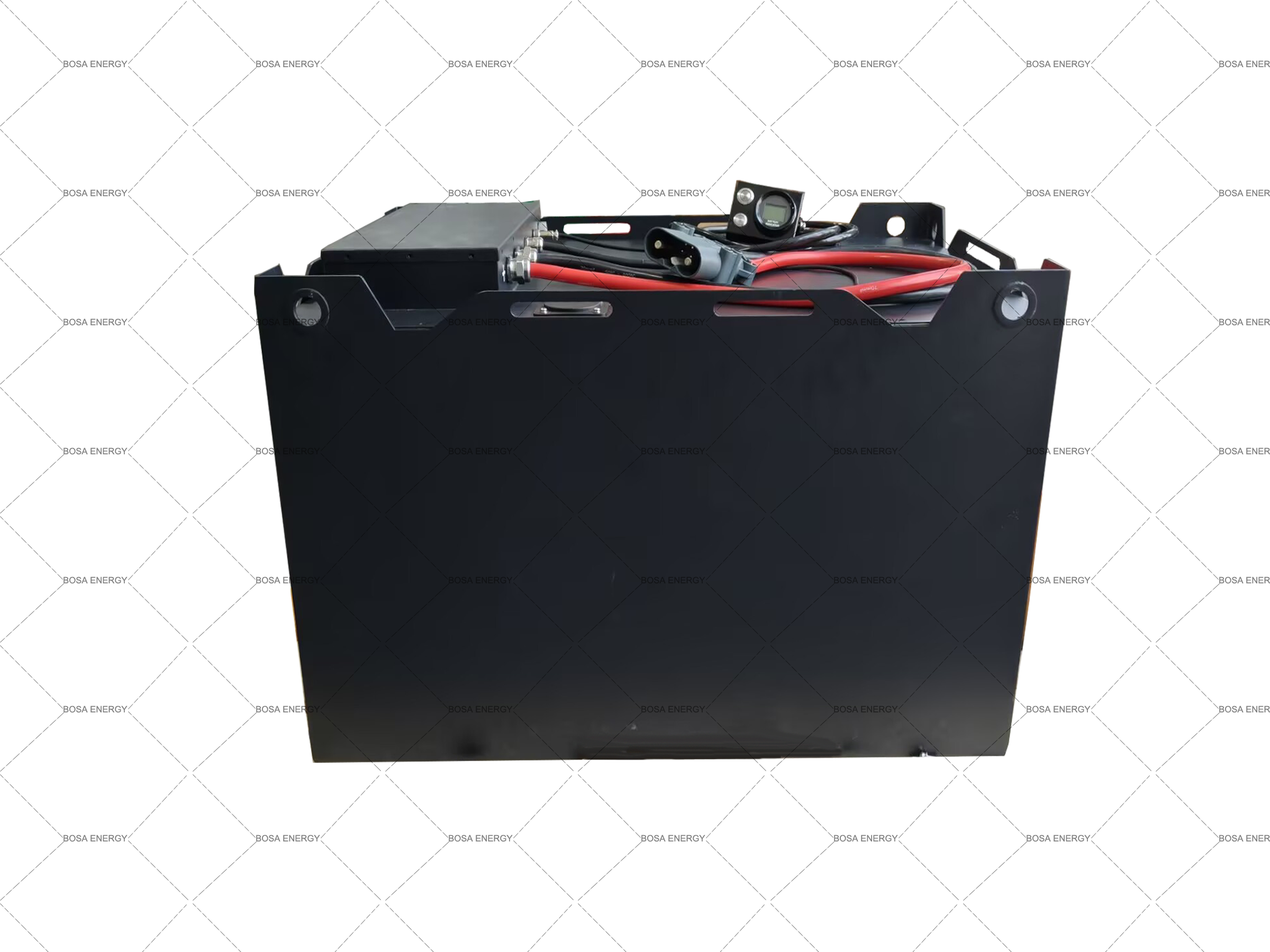

Our 48V electric forklift battery pack :
High Capacity
460Ah Large Capacity
Delivers long-lasting and stable power for demanding forklift operations.
Intelligent Battery Management
GPS + Smart BMS + Battery Display
Enables real-time battery monitoring and smarter equipment management for more efficient operation and scheduling.
Safe & Reliable Power
Class A LFP Cells
Built with high-quality LFP cells for enhanced safety, reliability, and long cycle life.
Flexible Compatibility
Designed for Multiple Forklift Models
Flexible configuration allows the battery to adapt to various forklift models and different working conditions.
Specification sheet:
| 51.2V-314Ah | 51.2V-460Ah | 51.2V-560AH | |
| Battery chemistry | Lithium lron Phosphate | ||
| Nominal battery voltage | 51.2V | 51.2V | 51.2V |
| Nominal battery capacity | 314Ah | 460Ah | 560Ah |
| Nominal battery energy capacity | 16.1kwh | 23.5kwh | 28.6kwh |
| Cycle life | 3000 cycles @ 0.5C/0.5C @ 25±2°C | ||
| Battery monitoring | Support | ||
| Communication | CAN | ||
| Terminals | Rema connector | ||
| Product weight (kg / lbs) | 156 / 343.92 | 234 / 515.88 | 300 / 661.39 |
| Dimension（L*W*H mm） | 750*400*400 | 800*520*300 | 750*510*550 |
| Dimension（L*W*H Inches） | 29.5*15.7*15.7 | 31.5*20.5*11.8 | 29.5*20.1* 21.7 |
| Protection degree | IP54 | IP54 | IP54 |
| Protections | Overvoltage, undervoltage, overcurrent, overtemperature, low temperature, short circuit, etc. | ||
| Safety relay | support | support | support |
| Safety relay controls | support | support | support |
