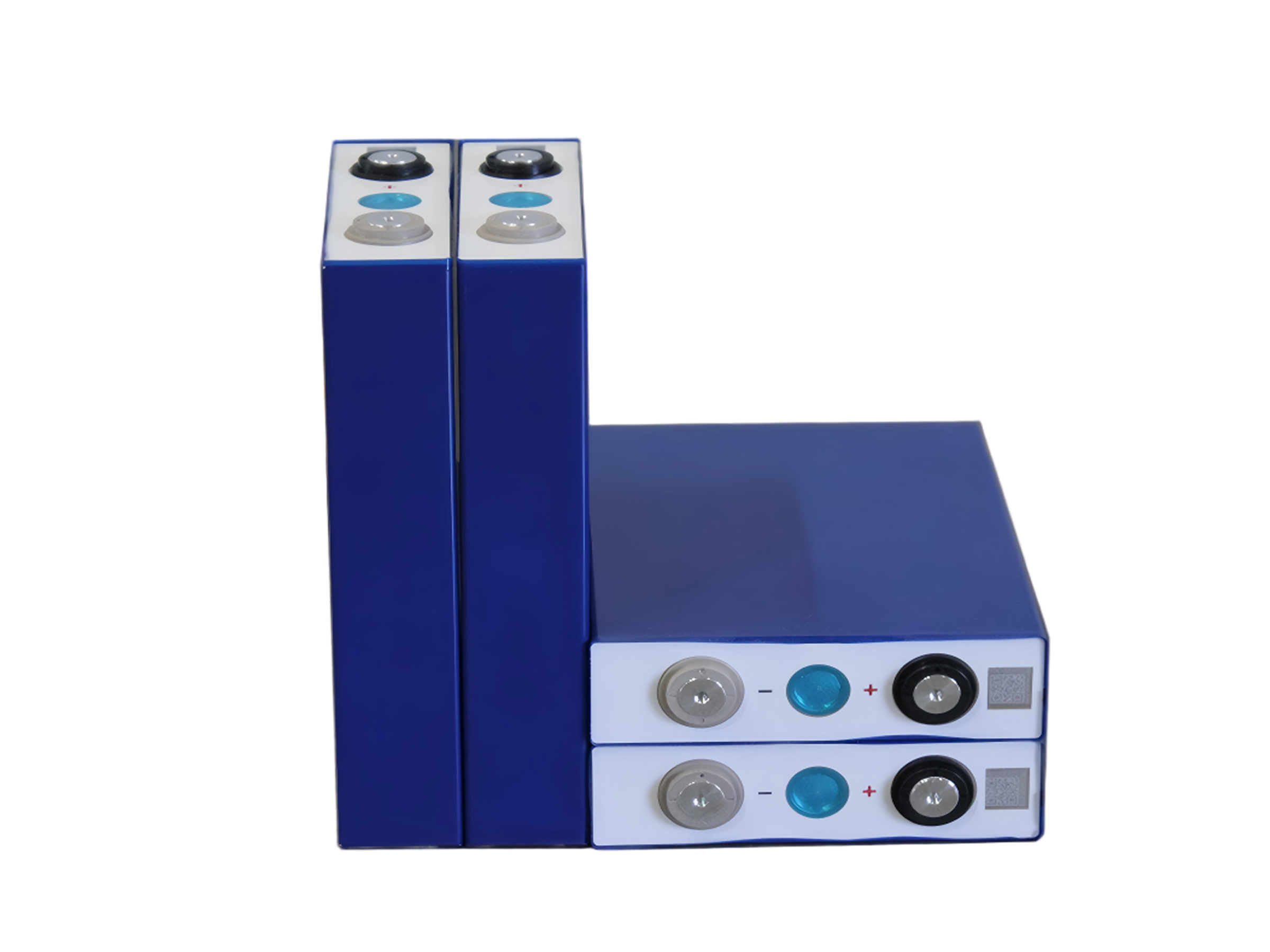

LF105 cell

Item			Parameter	Remark
Typical Capacity			106.5Ah@1.0C discharge	Discharge current 1.0C with 2.5V cut off (25±2)℃
Minimum Capacity			105.0Ah@1.0C discharge
Typical Voltage			3.2V	Under 0.5C discharge
AC Impedance Resistance			≤0.5mΩ
Charge current (CC-CV)		Max Charge Current	1 C	The maximum charge current of the battery does not exceed 1C under 0℃～45℃.
		Cut-off Voltage	3.65 V
Discharge		Max Discharge Current	1 C	preference value.
		Cut-off Voltage	2.5 V
Charging time		Standard	2.0 h	0.5C charge (time is reference)
		Quick charge	1.0 h	lC charge(time is reference)
Recommend SOC Window			SOC: 10%~90%
Charging Temperature			0℃~55℃	See the appendix for details.
Discharging Temperature			-20C~55℃	Battery can work at specified temperature range with capacity loss in tolerance.
Storage Temperature	One month		-20℃~45℃
	One year		0℃~35℃
Storage Humidity			<70%
Weight			1980g±100g
