Materials : NFPP/HC
Nominal capacity: 175Ah
Min. capacity: 175Ah
For excellent quality and performance our products are popular in more than 30 countries in the world.
We have 4 AI powered production lines for manufacturing products. including Cell Selection and Testing; Module Assembly; Battery Pack Assembly.
Our sodium-ion batteries has the following advantages:
The battery size is the same as our 314Ah, so customers don’t need to change the structural design!
Cycle life: ≥8000 cycles @ 0.5P/0.5P

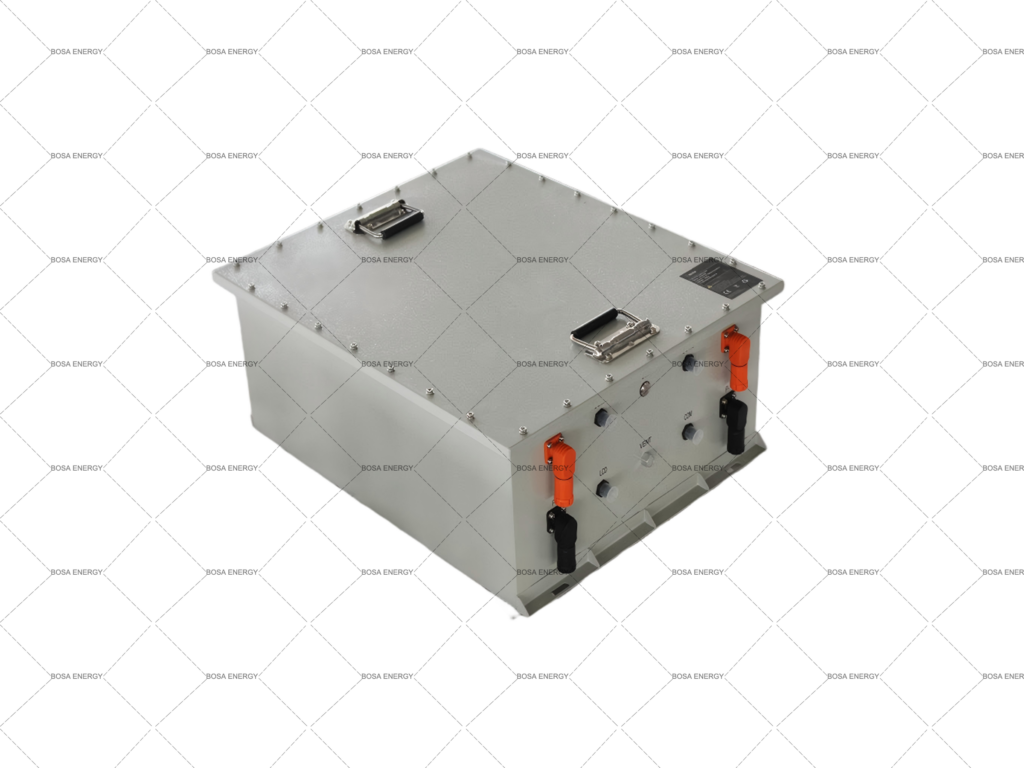

We will also be launching a 175Ah module; its modular design makes it easier for customers to install and use.
The following is our 175Ah sodium-ion battery cell specification sheet:
| item | index | unit | condition |
| Materials | NFPP/HC | ||
| Nominal capacity | 175 | Ah | 0.5C/1.5-3.5V |
| Min. capacity | 175 | Ah | 0.5C/1.5-3.5V |
| Voltage Platform | 2.9 | V | |
| AC internal resistance | ≤0.25 | mΩ | 1KHz |
| DC internal resistance | ≤0.60 | mΩ | 25±2℃，55%SOC1C10s |
| Size | 174.2*71.6*204.4 | mm | |
| Weight | 4.75 | Kg | |
| Mass energy density | 110 | Wh/Kg | |
| Volumetric energy density | 206 | Wh/L | |
| Operating temperature | -40~+75 | ℃ | |
| Cycle life | 10000+ | Cls | 0.5P/0.5P/100%DOD/70%SOH@RT |
