| Cell Type | LF304 | |
| Nominal Capacity(Ah) | ≥304 | |
| Minimal Capacity(Ah) | 304 | |
| Nomina1 Vo1tage(v) | 3.2 | |
| Intermal Impedance (mΩ) | ≤0.5 | |
| Charging Cut-off Vo1tage (v) | 3.65 | |
| Discharging Cut-off Vo1tage (v) | 2.5 | |
| Standard Charging CurrentA | 0.5C | |
| standard Discharging Current (A) | 0.5C | |
| ChargingTime (H) | 3 | |
| Charge Method | Standard charge method | 0.5C |
| Rapid charge method | 1.0C | |
| Max Contiruous Discharge | 250 A/1C | |
| Nominal Energy (Wh) | 972.8 | |
| cycle Life | 25℃standard Cycle | ≥3500 |
| 45℃standard cycle | ≥1800 | |
| Max. Pulse(10sec) Discharge Current(A) | 2C/2C | |
| OperatingTemperatureRange | charge(C) | 0°C-60 °c |
| Discharge(℃) | -30°C-60° C | |
| storage Temperature | Wighin 1 months | 0°C-35 °C |
| Within 1 month | -20°C-45℃ | |
| EnergyDensity | 177.84Wh/KG | |
| Dimension | Width | 173.70±0.50mmn |
| Thickness | 71.70±0.50 mm | |
| (under300+20kg,30%-40%SOC) | ||
| High(tota1) | 207.20±0.50 mm | |
| High(subject) | 204.40±0.50 mm | |
| Polar co1umn center distance | 123.00±0.30 m | |
| ce11 Weight (kg) | 5.47±0.05 kg | |
| (Including b1ue film，can-top film) | ||

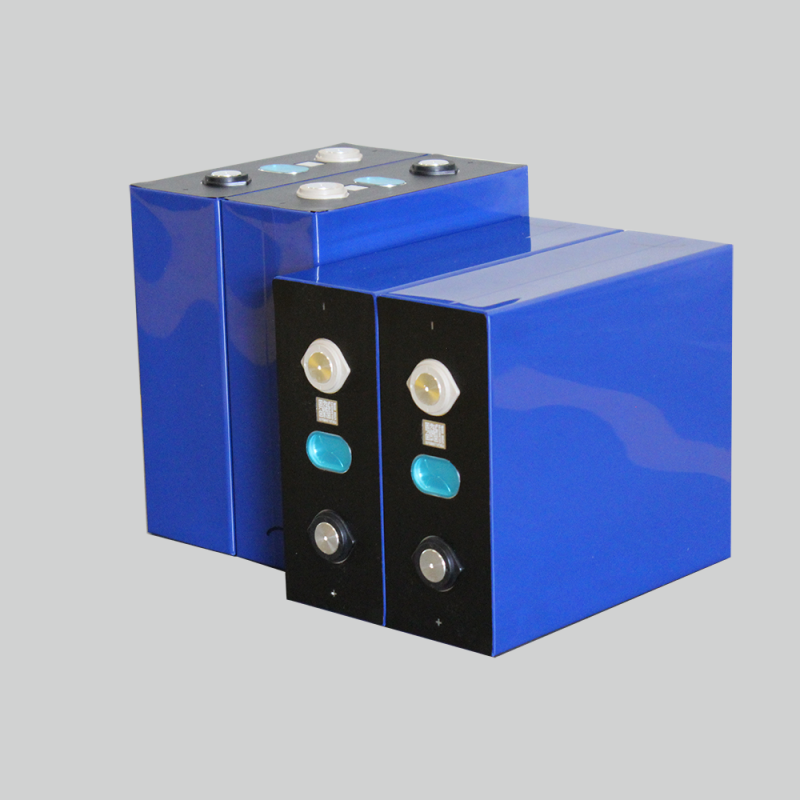

LF304 cell
