| Item | Parameter | Remark | ||
| Typical Capacity | 106.5Ah@1.0C discharge | Discharge current 1.0C with 2.5V cut off (25±2)℃ | ||
| Minimum Capacity | 105.0Ah@1.0C discharge | |||
| Typical Voltage | 3.2V | Under 0.5C discharge | ||
| AC Impedance Resistance | ≤0.5mΩ | |||
| Charge current (CC-CV) | Max Charge Current | 1 C | The maximum charge current of the battery does not exceed 1C under 0℃～45℃. | |
| Cut-off Voltage | 3.65 V | |||
| Discharge | Max Discharge Current | 1 C | preference value. | |
| Cut-off Voltage | 2.5 V | |||
| Charging time | Standard | 2.0 h | 0.5C charge (time is reference) | |
| Quick charge | 1.0 h | lC charge(time is reference) | ||
| Recommend SOC Window | SOC: 10%~90% | |||
| Charging Temperature | 0℃~55℃ | See the appendix for details. | ||
| Discharging Temperature | -20C~55℃ | Battery can work at specified temperature range with capacity loss in tolerance. | ||
| Storage Temperature | One month | -20℃~45℃ | ||
| One year | 0℃~35℃ | |||
| Storage Humidity | <70% | |||
| Weight | 1980g±100g | |||

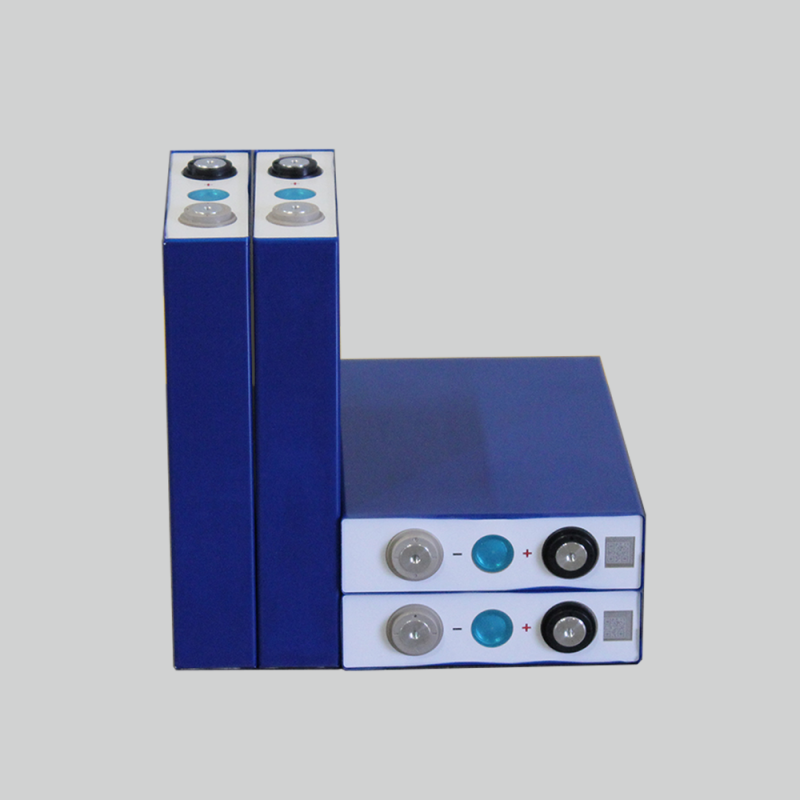

LF105 cell
