| Cell Type | LF230 | |
| Nominal Capacity(Ah) | ≥230 | |
| Minimal Capacity(Ah) | 230 | |
| Nominal Voltage(V) | 3.20 | |
| Internal Imbedance (mΩ) | ≤0.30 | |
| Charging Cut-off Voltage (V) | 3.65 | |
| Discharging Cut-off Voltage (v) | 2.5 | |
| Standard Charging Current (A) | 0.5 C | |
| Standard Discharging Current (A) | 0.5 C | |
| Charging Time (H) | 3 | |
| Charge Method | Standard charge method | 0.5 C |
| Rapid charge method | 1.0 C | |
| Max Continuous Discharge | 1.0 C | |
| Nominal Energy (Wh) | 736 | |
| Cycle Life | 25℃ Standard Cycle | ≥3500 |
| 45C Standard Cycle | ≥1800 | |
| Max. Pulse(10sec) Discharge | 2.0 C | |
| Operating Temperature Range | Charge(°C) | 0°C~60 ℃ |
| Discharge(°C) | -30C~60 ℃ | |
| Storage Temperature | one month | -20°C~45 ℃ |
| one year | 0°C～35°C | |
| Energy Density | 179.08Wh/kg | |
| Dimension | Width | 173.93土0.50mm |
| Thickness(300+20kgf,40%SOc) | 53.85土0.40mm | |
| Average thickness(300±20kgf, 40%SOC) | 53.85土0.15mm |
|
| High(total) | 207.30±0.50mm | |
| High(subject) | 204.60±0.50mm | |
| Tab Distance | 123.00土0.30mm | |
| Cell Weight (kg) | 4.11±0.10kg | |

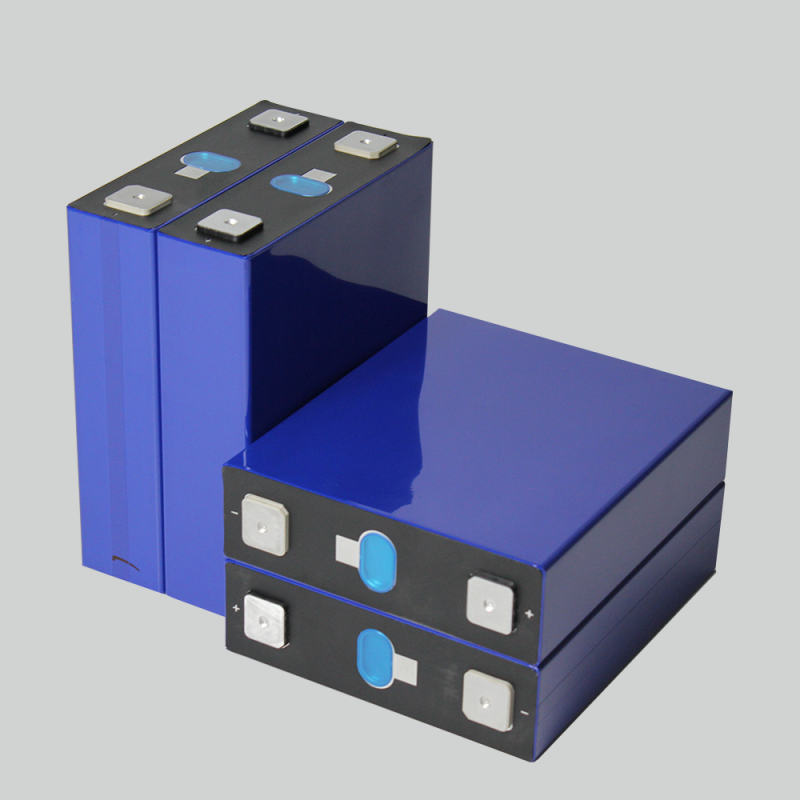

LF230 cell
