Химический состав батареи: LFP
Номинальное напряжение батареи: 51,2 В
Номинальная емкость аккумулятора: 105 Ач
Номинальная емкость батареи: 5,376 кВт·ч
Срок службы: 3500 циклов при 0,5°C/0,5°C при 25±2°C
Доступны индивидуальные решения.

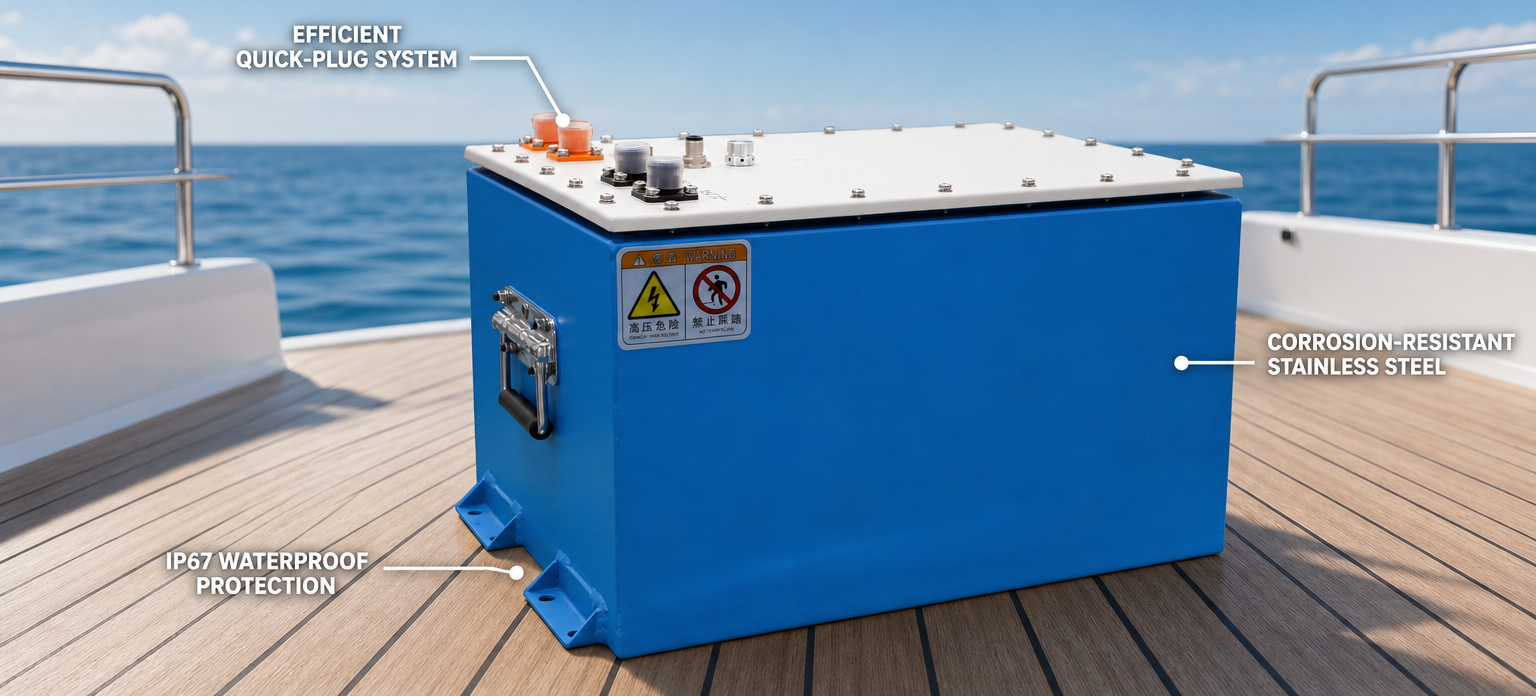

The modular design allows you to easily scale your energy storage system according to your needs.
Each module works as a building block, enabling flexible system configurations of up to:
Combining state-of-the-art lithium battery technology with an integrated BMS and intelligent software.
The integrated system provides robust performance, enhanced safety, and reliable energy management.
Smart software and intelligent battery management make the system simple to operate and maintain.
| 48 В, 105 Ач-HV | 48 В, 105 Ач-LV | ||
| Химический состав батарей | Lithium lron Phosphate | ||
| Nominal battery voltage | 51,2 В | ||
| Nominal battery capacity | 105 Ач | 105 Ач | |
| Nominal battery energy capacity | 5,376 кВт·ч | 5,376 кВт·ч | |
| Срок службы цикла | 3500 cycles@ 0.5C/0.5C @25±2°C | ||
| Battery monitoring | интегрированный | ||
| MasterBus communication | да | / | |
| Коммуникация | CAN 2.0 | ||
| Терминалы | Quick plug | ||
| Mounting position | long side | ||
| Product weight | 37.8±1.5kg | 44±2kg | |
| Dimension（L*W*H） | 449* 304 *247mm | 449* 304 * 247mm | |
| Protection degree | IP67 | ||
| Parallel connection | up to 6P | up to 8P | |
| Series connection | up to 12S | Not Allow | |
| Защита | over/under voltage, over/under current, over/under temperature | ||
| Safety relay | интегрированный | / | |
| Safety relay controls | интегрированный | / | |
